Box End Wrenches
» Products » Combination Wrenches 6011

OUR PRODUCTS

ART # 6011 COMBINATION SPANNER COLD STAMP SHALLOW OFFSET (Acc. To DIN-3113B)


« Back

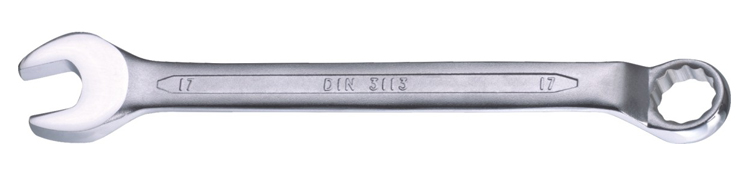

Combination Spanner Cold Stamp Shallow Offset



DESCRIPTION



HIGH PERFORMANCE
High Performance
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.



SIZE SAE LENGTH SPANNER WT. QTY./CTN NET NET WT./ CTN GR. WT./CTN VOL/CTN
5 86 0.022 1000 22.000 24.500 0.019
6 1/4" 93 0.022 1000 22.000 25.500 0.021
7 ** 97 0.024 1000 24.000 27.500 0.021
8 5/16" 103 0.028 600 16.800 19.100 0.02
9 11/32" 113 0.034 500 17.000 20.500 0.02
10 3/8" 128 0.044 400 17.600 20.500 0.019
11 7/16" 140 0.054 300 16.200 18.500 0.018
12 ** 152 0.068 200 13.600 15.200 0.016
13 1/2" 165 0.078 200 15.600 16.600 0.016
14 9/16" 178 0.1 200 20.000 21.700 0.018
15 19/32" 190 0.11 150 16.500 17.200 0.016
16 5/8" 200 0.136 150 20.400 21.200 0.02
17 11/16" 216 0.16 100 16.000 16.700 0.02
18 ** 228 0.184 100 18.400 19.200 0.021
19 3/4" 241 0.218 100 21.800 22.600 0.021
20 25/32" 253 0.248 100 24.800 25.600 0.021
21 13/16" 266 0.286 50 14.300 15.100 0.019
22 7/8" 278 0.302 50 15.100 15.900 0.019
23 ** 278 0.315 50 15.800 16.600 0.02
24 15/16" 303 0.35 50 17.500 18.200 0.02
25 1" 330 0.426 40 17.000 18.000 0.018
26 ** 330 0.472 40 18.900 19.600 0.018
27 1-1/16" 343 0.484 40 19.400 20.100 0.019
28 1-1/8" 358 0.53 30 15.900 16.600 0.016
29 ** 358 0.564 30 16.900 17.600 0.016
30 1-3/16" 381 0.564 30 16.900 17.600 0.016
32 1-1/4" 405 0.68 30 20.400 21.100 0.018
Sets Sizes
3M 8, 10, 12MM
6M I 6, 9, 10, 13, 15, 17MM
6M II 8, 10, 12, 13, 14, 17MM
6M III 9, 10, 11, 14, 17, 19MM
6M IV 11, 12, 13, 14, 15, 16MM
7M 10, 11, 12, 13, 14, 17, 19MM
7A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8A 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8M I 6, 8, 9, 10, 13, 15, 17, 19MM
8M II 8, 9, 10, 12, 13, 14, 17, 19MM
8M III 6, 8, 10, 12, 13, 14, 17, 19MM
8M IV 8, 10, 11, 12, 13, 14, 17, 19MM
8M V 8, 9, 10, 11, 13, 14, 17, 19MM
9A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
9M I 8, 10, 11, 12, 13, 14, 15, 17, 19MM
9M II 8, 10, 11, 12, 13, 14, 15, 17, 19, 22MM
9M III 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M I 6, 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M II 8, 10, 12, 13, 14, 17, 19, 22, 24, 27MM
10M III 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
11M I 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM
11M II 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24MM
12M I 6, 7, 8, 9, 10, 11, 12, 13, 15, 17, 19, 22MM
12M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
12M III 8, 9, 10, 12, 13, 14, 17, 19, 22, 24, 27, 32MM
12M IV 8, 10, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32MM
12M V 10, 12, 13, 14, 16, 17, 19, 22, 24, 27, 30, 32MM
12M VI 6, 8, 9, 10, 11, 13, 14, 16, 17, 19, 21, 22MM
12M VII 10, 13, 15, 17, 19, 21, 22, 24, 25, 27, 28, 32MM
12M VIII 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22MM
12M IX 6, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 22MM
14M I 6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24, 27MM
14M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19MM
14M III 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24MM
14M IV 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 23, 24MM
14M V 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24MM
15M 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 32MM
16M 8, 9, 10, 11, 12, 13, 14, 17, 19, 21, 22, 23, 24, 27, 30, 32MM
17M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22MM
21M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 25, 27, 28, 30, 32MM
22M I 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32MM
22M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 26, 27, 28, 30, 32MM
22M III 6 to 19 & 10, 13, 21, 22, 24, 27, 30, 32MM
22AM I 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
22AM II 6, 7, 8, 9, 10, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 11/32, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4"
25M 6 to 28, 30, 32MM
25AM 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1"
26M 6 to 30, 32MM
27M I 6 to 32MM
27M II 6 to 28, 30, 32, 36, 38MM
30AM 6, 8, 10, 12, 13, 14, 15, 17, 18MM | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
32M 6 to 28, 30, 32, 34, 36, 38, 41, 46, 48, 50MM
