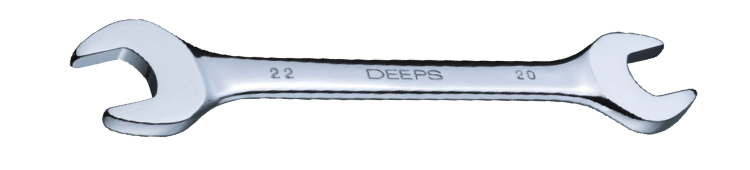

ART # 151 DOUBLE OPEN END WRENCHES FULLY POLISHED ELLIPTICAL PATTERN (DIN 3110), Sizes : 6X7 to 36X41mm
DESCRIPTION
HIGH PERFORMANCE
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.
POWERFUL TORQUE:
Optimum allow-steel structure and head treatment throughout ensure high strength. the long shank of wrench allows extra leverage without compromising safety.
| SIZE | LENGTH | WT/PC | QTY/CTN | GR.WT/CTN | VOL./CTN |
|---|---|---|---|---|---|
| 6X7 | 121 | 0.023 | 500 | 12.600 | 0.012 |
| 8X9 | 139 | 0.030 | 500 | 16.100 | 0.012 |
| 10X11 | 157 | 0.050 | 300 | 16.100 | 0.014 |
| 12X13 | 171 | 0.066 | 200 | 15.100 | 0.014 |
| 14X15 | 188 | 0.093 | 200 | 19.500 | 0.016 |
| 16X17 | 204 | 0.124 | 150 | 18.900 | 0.017 |
| 18X19 | 221 | 0.142 | 100 | 16.100 | 0.017 |
| 20X22 | 235 | 0.198 | 75 | 15.300 | 0.015 |
| 21X23 | 245 | 0.230 | 75 | 18.100 | 0.012 |
| 24X27 | 263 | 0.297 | 50 | 15.500 | 0.013 |
| 25X28 | 275 | 0.375 | 50 | 19.300 | 0.013 |
| 30X32 | 300 | 0.484 | 30 | 15.400 | 0.011 |
| Sets | Sizes |
|---|---|
| 6M I | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM |
| 6M II | 6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM |
| 7M | 6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM |
| 8M | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM |
| 11M | 8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM |
| 12M | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM |
| SIZE | SAE |
|---|---|
| 6X7 | 1/4x5/16 |
| 8X9 | 5/16x3/8 |
| 10X11 | 3/8x7/16 |
| 12X13 | |
| 14X15 | 1/2x9/16 |
| 16X17 | 5/8x11/16 |
| 18X19 | 3/4x25/32 |
| 20X22 | |
| 21X23 | |
| 24X27 | 13/16x7/8 |
| 25X28 | |
| 30X32 |
