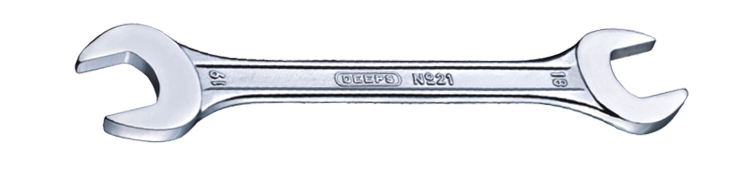

ART # 21 DOUBLE OPEN END WRENCHES Acc. To IS-2028
| SIZE | SAE | LENGTH | SPANNER WT. | QTY./CTN | NET NET WT./ CTN | GR. WT./CTN | VOL/CTN |
|---|---|---|---|---|---|---|---|
| 6X7 | 1/4"X5/16" | 95 | 0.016 | 1000 | 16.000 | 19.500 | 0.024 |
| 8X9 | 5/16"X11/32" | 100 | 0.025 | 800 | 20.000 | 22.100 | 0.025 |
| 10X11 | 3/8"X7/16" | 115 | 0.035 | 600 | 21.000 | 23.300 | 0.023 |
| 12X13 | 7/16"X1/2" | 129 | 0.047 | 400 | 18.800 | 20.500 | 0.021 |
| 14X15 | 1/2"X9/16" | 147 | 0.063 | 300 | 18.900 | 20.300 | 0.019 |
| 16X17 | 19/32"X11/16" | 161 | 0.085 | 200 | 17.000 | 18.700 | 0.019 |
| 18X19 | 5/8"X3/4" | 181 | 0.11 | 150 | 16.500 | 17.900 | 0.02 |
| 20X22 | 35/32"X7/8" | 199 | 0.157 | 100 | 15.700 | 16.800 | 0.018 |
| 21X23 | 13/16"X7/8" | 211 | 0.175 | 100 | 17.500 | 18.500 | 0.02 |
| 24X27 | 15/16"X1-1/16" | 224 | 0.244 | 75 | 18.300 | 19.300 | 0.018 |
| 25X28 | 1"X1-1/8" | 235 | 0.269 | 75 | 20.200 | 21.100 | 0.02 |
| 30X32 | 1-3/16"X1-1/4" | 255 | 0.379 | 50 | 19.000 | 19.900 | 0.016 |
| Sets | Sizes |
|---|---|
| 5A | 1/4 X 5/16, 3/8 X 7/16, 1/2 X 9/16, 11/16, 19/32, 5/8 X 3/4 |
| 6M I | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM |
| 6M II | 6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM |
| 7M | 6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM |
| 7A | 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 13/16 x 7/8, 15/16 x 1" |
| 8M | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM |
| 8A | 1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 3/4 X 25/32, 13/16 x 7/8, 15/16 x 1" |
| 11M | 8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM |
| 12M | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM |
