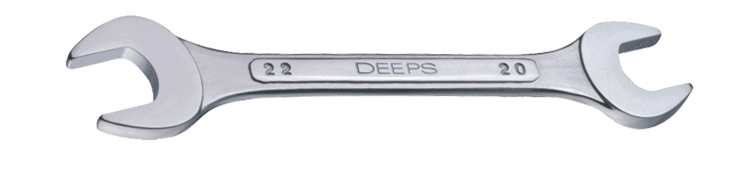

ART # 71 DOUBLE OPEN END SPANNER (Acc. To ANSI / ASME B107.100/2002(B107.39))

Name: Deeps Tools Pvt. Ltd.
Address: 320-321, Industrial Area-A,, Ludhiana, Punjab, 141003, INDIA
Telephone: +911612222523
Price range: $$$
Rating: 4.5

« Back

PACKING: 5/10PC IN A BOX

SIZE	SPANNER WT.	LENGTH	QTY./CTN	NET NET WT./ CTN	GR. WT./CTN	VOL/CTN
6X7	0.020	109	800	16.000	18.100	0.024
8X9	0.029	119	600	17.400	19.100	0.025
10X11	0.040	129	500	20.000	22.000	0.023
12X13	0.055	144	300	16.500	17.900	0.022
14X15	0.065	160	250	16.250	17.500	0.019
16X17	0.089	179	200	17.800	19.500	0.019
18X19	0.124	199	150	18.600	20.000	0.020
20X22	0.190	226	100	19.000	20.100	0.018

Sets	Sizes
5A	1/4 X 5/16, 3/8 X 7/16, 1/2 X 9/16, 11/16, 19/32, 5/8 X 3/4
6M I	6x7, 8x9, 10x11, 12x13, 14x15, 16x17 MM
6M II	6x7, 8x10, 10x12, 12x13, 14x15, 17x19 MM
7M	6x7, 8x10, 9x11, 10x12, 12x13, 14x17 , 19x22 MM
7A	1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 13/16 x 7/8, 15/16 x 1"
8M	6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM
8A	1/4 x 5/16, 5/16 x 3/8, 3/8 x 7/16, 1/2 x 9/16, 5/8 x 11/16, 3/4 X 25/32, 13/16 x 7/8, 15/16 x 1"
11M	8x10, 10x12, 12x13, 14x15, 13x17, 17x19, 19x22, 22x24, 24X27, 27X30, 30X32 MM
12M	6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21X23, 24X26, 25X28, 30X32 MM

SIZE	SAE
6X7	1/4x5/16
8X9	5/16x3/8
10X11	3/8x7/16
12X13
14X15	1/2x9/16
16X17	5/8x11/16
18X19	3/4x25/32
20X22
21X23
24X27	13/16x7/8
25X28
30X32
