SUPER DIRVE
(Size:6 to 32mm)

OVAL BODY FOR A COMFORTABLE GRIP




« Back

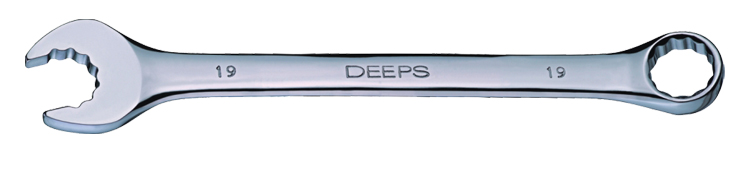

Super Drive
deg
60° Operated
(Ordinart Spanner)
30° Operated
(Super Drive)
The regular open ended wrench operates at 60(degree) angle. However, this super drive open ended wrench is capable of operating at 30 (degree)angle.
MORE POWERFUL TIGHTENING
Drives
Reduced stress from larger contact areas and no sharp angles within the tool. Torque transmission through fastener flats. Longer life.

SIZES LENGTH
6 95
7 95
8 101
9 107
10 117
11 130
12 142
13 150
14 164
15 174
16 186
17 203
18 214
19 230
20 230
21 255
22 282
23 282
24 314
25 334
26 334
27 360
28 379
29 379
30 379
32 409

Sets Sizes
3M 8, 10, 12MM
6M I 6, 9, 10, 13, 15, 17MM
6M II 8, 10, 12, 13, 14, 17MM
6M III 9, 10, 11, 14, 17, 19MM
6M IV 11, 12, 13, 14, 15, 16MM
7M 10, 11, 12, 13, 14, 17, 19MM
7A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8A 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
8M I 6, 8, 9, 10, 13, 15, 17, 19MM
8M II 8, 9, 10, 12, 13, 14, 17, 19MM
8M III 6, 8, 10, 12, 13, 14, 17, 19MM
8M IV 8, 10, 11, 12, 13, 14, 17, 19MM
8M V 8, 9, 10, 11, 13, 14, 17, 19MM
9A 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
9M I 8, 10, 11, 12, 13, 14, 15, 17, 19MM
9M II 8, 10, 11, 12, 13, 14, 15, 17, 19, 22MM
9M III 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M I 6, 8, 10, 12, 13, 14, 15, 17, 19, 22MM
10M II 8, 10, 12, 13, 14, 17, 19, 22, 24, 27MM
10M III 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
11M I 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM
11M II 8, 9, 10, 11, 12, 13, 14, 17, 19, 22, 24MM
12M I 6, 7, 8, 9, 10, 11, 12, 13, 15, 17, 19, 22MM
12M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM
12M III 8, 9, 10, 12, 13, 14, 17, 19, 22, 24, 27, 32MM
12M IV 8, 10, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32MM
12M V 10, 12, 13, 14, 16, 17, 19, 22, 24, 27, 30, 32MM
12M VI 6, 8, 9, 10, 11, 13, 14, 16, 17, 19, 21, 22MM
12M VII 10, 13, 15, 17, 19, 21, 22, 24, 25, 27, 28, 32MM
12M VIII 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22MM
12M IX 6, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 22MM
14M I 6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24, 27MM
14M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19MM
14M III 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24MM
14M IV 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 23, 24MM
14M V 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24MM
15M 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 32MM
16M 8, 9, 10, 11, 12, 13, 14, 17, 19, 21, 22, 23, 24, 27, 30, 32MM
17M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22MM
21M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24, 25, 27, 28, 30, 32MM
22M I 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32MM
22M II 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 23, 24, 26, 27, 28, 30, 32MM
22M III 6 to 19 & 10, 13, 21, 22, 24, 27, 30, 32MM
22AM I 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
22AM II 6, 7, 8, 9, 10, 12, 13, 14, 15, 17, 19MM | 1/4, 5/6, 11/32, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4"
25M 6 to 28, 30, 32MM
25AM 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19MM | 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1"
26M 6 to 30, 32MM
27M I 6 to 32MM
27M II 6 to 28, 30, 32, 36, 38MM
30AM 6, 8, 10, 12, 13, 14, 15, 17, 18MM | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
32M 6 to 28, 30, 32, 34, 36, 38, 41, 46, 48, 50MM
SIZE MM SIZE SAE
6MM 1/4"
7MM
8MM 5/16"
9MM 11/32"
10MM 3/8"
11MM 7/16"
12MM
13MM 1/2"
14MM 9/16"
15MM
16MM 5/8"
17MM 11/16"
18MM
19MM 3/4"
20MM 25/32"
21MM 13/16"
22MM 7/8"
23MM
24MM 15/16"
25MM 1"
26MM
27MM 1.1/16"
28MM 1.1/8"
29MM
30MM 1.3/16"
32MM 1.1/4"
